Classification of LED Display

(1). According to the location applied, LED display (Shenzhen Colorlight LED Optoelectronics Co.,Ltd is an high quality indoor and outdoor LED display, LED video wall manufacturer and supplier in China.) can be divided into two basic types: outdoor LED display and indoor LED display.

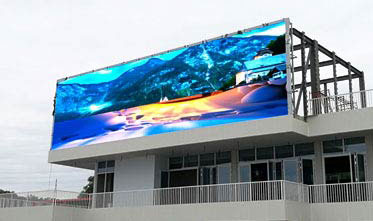

1.Outdoor LED display

Outdoor LED display is mainly used in outdoor application. The main features of outdoor LED display are high brightness, windproof, waterproof and dustproof. High brightness to ensure the video, image or text in the LED display can be seen from long distance. In generally, the viewing distance for out LED display can up to 100 meters, for P20mm giant size LED sign the viewing distanc can up to 200 meter.and the LED display cabinets have seal and waterproof protection. this feature can ensure the LED display can work well in outdoor environment. Outdoor LED display can be designed with specific size as the customers’ requirements and the locations applied. Currently Outdoor LED display can be divided into the following types according to the pixel of LED module: P4mm outdoor SMD LED display, P5mm outdoor SMD LED display, P6mm SMD outdoor LED display, P6.67mm SMD LED display, P8mm SMD LED display, P10mm SMD LED display, P10mm DIP LED display, P16mm DIP LED display.

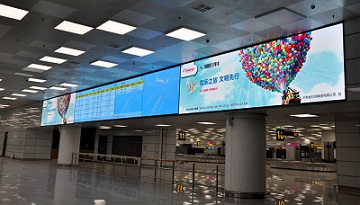

2.Indoor LED display

Indoor LED display mainly used in indoor application. Indoor LED screen can't used in outdoor application because of the display cabinet dont have seal and waterproof abilities. Compared with outdoor LED display, the indoor LED display bightness is low and the viewing distance for indoor LED sign is just only a few meters. Currently indoor LED display is manily divied into following types according to the pixel of LED module: P2mm indoor LED display, P2.5mm indoor LED display, P3mm indoor LED display, P4mm indoor LED display, P5mm indoor LED display, P6mm indoor LED display, P7.62mm indoor LED display, P8mm indoor LED display, P10 indoor LED display.Besides, with the development of technology, more small pixel indoor LED display are put on the market, for example, P1.667mm HD indoor LED display, P1.92mm HD indoor LED display, etc. Indoor LED display is mainly used in locations such as stage, shopping center, mall, supermaket, monitoring room, conference room, bar, KTV, station, airport, etc.

(2). According to LED’s color, LED display can be divided into three basic types: single color LED display, double color LED display and full color LED display.

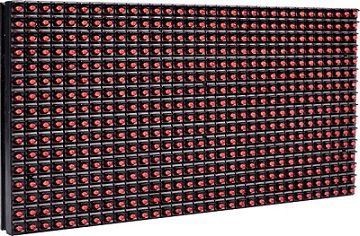

1.Single color LED display

This type LED display pixel has only one single color. Currently there are 5 basic type. Single red color LED display, Single green color LED display, single white color LED display, single yellow color LED display, single blue color LEED display.  But most client select red color as first choice as its luminescent efficiency is higher, which make the screen is more brighter. when people want to select a single color LED display, we aloways recommend them to use P10mm single red LED display, which is brighter product in the LED display market.

2.Double color LED display

Every pixel of this kind of LED display has two base color: red and green.

3.Full color LED display.

Full color LED display display consists of red, green and blue three base color.

(3). According to usage, LED display can be divided into two basic types: fixed LED display, Rental LED display.

1. Fixed LED display

This kind or LED display is installed one place and will not move frequently. Fixed LED screen cabinet is mostly consists of Iron steel or aluminum material,  and also cabinet with high hardness.

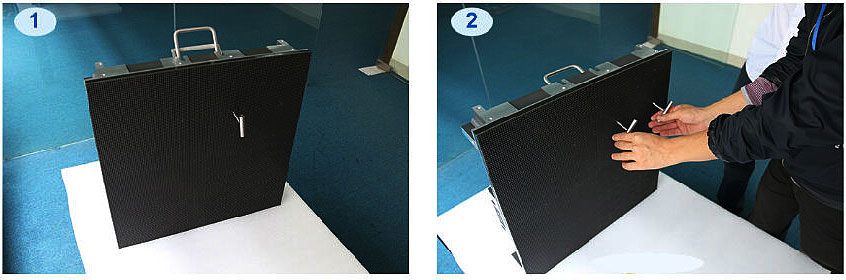

2. Rental LED display

This kind of display is mainly used for rental event. Then main features of rental LED screen is portability, fast disassembly and assembly. More lighter weight cabinet design enables the display easy carry, transport and fast installtion in just a few minutes.Rental LED display cabinet is mostly Die-cast aluminum material, which can ensure the led screen is light and easy to transport, good flatness and seamless. Currently rental LED display cabinet size is mainly with 500mm×500mm or 500mm×1000mm for choose. This size cabinet is mostly used for following pixels: P2.98mm, P3.91mm, P4.81mm, P5.68mm. P5.95mm, P6.25mm, which LED module is the same size as 250mm×250mm. Other size cabinets are also can be selected with following types: 512mmx512mm, 480mmx480mm, 576mmx576mm, 640mmx640mm, 768mmx768mm.

(4). LED displays can be classified into following types according to pixel of LED display module: P2mm, P2.5mm, P3mm, P3.91mm, P4.81mm, P4mm, P5mm, P6mm, P5.95mm, P6.25mm, P6.67mm, P7.62mm, P8mm, P10mm, P16mm,etc
