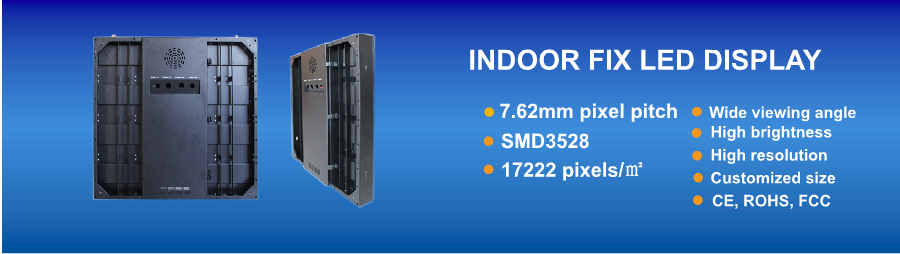

Colorlight P7.62 indoor LED screen, Ph7.62mm HD LED video wall

Colorlight P7.62 SMD indoor LED display is one of the most popular indoor LED display products, with the features of 17222 pixels density per square meter and 7.62mm pixel pitch, P7.62mm indoor LED display owns a better image clarity and softness. also it can get best viewing experience when the viewing distance is 6m to 100m, so it's great for most indoor cases. Moreover, comparing with othe spec indoor LED display products, PH7.62 LED display hava its advantage when refer to the COST-PERFORMANCE. In addition, because of its high brightness, P7.62 led sign and P6 LED sign both can also be used for abundant sunlight semi-outdoor environment, thus it is very special.

In the past years, Colorlight P7.62mm led display screen stands out among the competitors by its high quality, high stability, outstanding performance, best consistency and affordable price, and most people and companies choose Colorlight LED as long term P7.62 indoor LED display provider.  Choosing Colorlight P7.62 indoor LED video wall means you have chosen experience, reliability and heart to heart service.  In addition, hundreds of mature projects have been proved the stability of our P7.62mm led screen product. also we offer any shape or size P7.62mm indoor LED sign,  that means, LED display size and structure can be customized depending on your need, custom - designed LED display solutions woube be made for you. and more, our full color P7.62 SMD LED display is manufactured using the high quality LED material and self developed steel structure (Aluminum is available too), offering stunning brightness, contrast and colour reproduction. welcome to wholesale SMD P7.62 indoor LED display from us. P2.5mm, P3mm, P4mm, P6mm, P10mm pixel pitch options are available too.

P7.62mm LED Video Wall Parameters


LED Module

Resolution

32(H)×32(V)

Pitch

7.62mm

Density

17222pixels/㎡

LED Arrangement

SMD 3IN1

Driver Mode

Dynamic 1/8 Duty constant current

Size

244mm×244mm

Mask

Pure Black mask-high contrast screen

LED Cabinet

Cabinet Size

732mm,976mm are Avaliable

Cabinet Material

Steel or Aluminum

Weight

About 45 kg/m2

Electricity Parameter

Optical Ratings

Brightness

≥1200cd/㎡

View Angle

140 degree ( horizontal)  140degree(vertical)

View Distance

7m-75m

Gray Scale

8bits input, correction with 14bits

Display Color

16.7M

Brightness Adjustment

100 levels

Power Supply

Operation Power

AC100-240V 50-60HZ  Switch-able

Maxim Power Consumption

650 W/m2

Average Power Consumption

320 W/m2

Control System

Correction Scale Level

16bits

Frame Update Frequency

6-750Hz

Screen Refresh Frequency

480-960Hz

Gamma Correction

-5.0—5.0

Support Input

Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI

Control Distance

Ethernet cable 100m, optical fiber 5km

Support VGA Mode

800×600,1024×768,1280×1024,1600×1200

Color Temperature

5000-9300 adjustable

Brightness Correction

dot by dot, module by module, cabinet by cabinet

Software LEDVISION

Reliability

Operating Temp.

-20-60 Celsius degree

Operating Humidity

10-95% RH

Operating Life

100,000 hours

MTBF

5000 hours

Continuous Working Time

≥48 hours

Protection Level

IP54

Out of Control Pixel Rate

0.01%


PRODUCT FEATURES

• Higher contrast ratio: High quality SMD3528 LED to ensure P7 LED sign has a high contrast rate and video is clearer and showy.
• Best viewing angle reach to 160° horizontal and 120° vertical, you will see a clear and showy picture or smooth video showing on the screen at different angle.
• Perfect visual effect: 17222 pixels density per square meter and 7mm pixel pitch to ensure a best balance between brightness and resolution.
• High quality LED to ensure P7 indoor LED sign has a excellent white balance even in semi-outdoor environment
• Adopted with High quality LED material and applied with strict quality control in order to ensure its high reliability and stability.
• Slim & Light design: indoor P6 LED screen adopts self developed aluminum or steel structure to ensure the display light weight, good flatness, excellent heat dissipation and smoothness, easy to handle and transport
• P7mm Indoor LED Display with 2 years warranty, 7/24 heart to heart befor-sale and after-sale service.
• Automatically adapt brightness to the changes of its surroundings for energy saving.
• High quality, High stability, 24/7 running, reliable non-stop.
• Easy installation and maintenance: module design to ensure easy installation and maintenance. save you labor and time.
• Customized size and structure design is available, OEM & ODM are welcomed too.
