P2mm HD LED Display

Click Here to Get Factroy Price LED Display and LED Modules

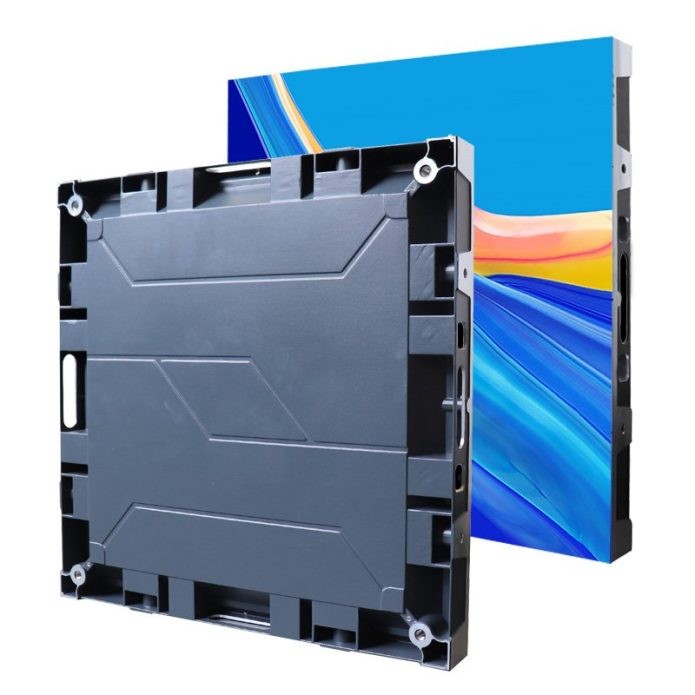

Colorlight P2mm HD led display screen LED video wall for High End application Standard Size 400mmX300mm,Colorlight P2mm LED display screen with Refresh rate over 2000Hz.

Pixel pitch: 2.0 mm
Refresh rate: >2000 Hz
Brightness: 500-1000 nits
Cabinet Size: 400mm*300mm*77mm
Cabinet Weight: 4.6kg

Product Features:

1: Standard Size Panel: 200*300mm
2: Standard Cabinet Size: 400*300mm
3: Gapless installation, wider viewing angle, good color uniformity
4: Soft images,green and environmental protection
5: High refresh rate, remove ghost without trailing
6: Locating slot work with dowel pin to ensure good flatness
7: 16bit gray scale processing, color expression more naturally
8: High refresh/High contrast/High grayscale/ Gorgeous picture showing
9: Die-cast aluminum cabinet design light and easy to transport, good flatness and seamless.

Product Parameters:

Pixel Configuration	SMD1010
Pixel pitch（mm）	P2
Pixel density（dots/m2）	250000
Module resolution（W×H）	100×150
Module size （mm）	200（W）×300（H）
Module weight （kg）	0.4
Maximum power consumption of the module（W）	40
Module of cabinet （W×H）	2×1
Cabinet resolution（W×H）	200×150
Cabinet size （mm）	400（W）×300（H）×66（D）
Cabinet area（m2）	0.12
Cabinet weight （kg）	4.6
Cabinet level up degree（mm	≤0.2
Maintenance mode	Front/Rear
Cabinet raw material	Die-casting aluminum
Single-point brightness correction	yes
Single - point color correction	yes
White Balance Brightness （nits）	≥800（6500K）
Color Temperature (K)	3200—9300(adjustable)
Viewing Angle (Horizontal / Vertical)	160/160
Deviation of center distance of light - emitting	<3%
Brightness / chromaticity uniformity	≥97%
Contrast	4000：1
Peak power consumption (W / m2)	800
Average power consumption (W / m2)	250
Power supply requirements	AC90~264V，frequency 47-63（Hz）
Frame rate (Hz)	50&60
Drive mode	Constant drive，1/30 scan
Grayscale level	65536
Refresh rate (Hz)	≥3840
Number of color processing bits	16bit
Video playback capabilities	2KHD，4KHD
Operating temperature / humidity range (℃ / RH)	-20 – 60 / 10%-85%RH
Storage temperature / humidity range (℃ / RH)	-20 – 60 / 10%-85%RH
Applicable standards	CCC，TUV-CE，ETL

1: High quality LEDs

We choose high reliable and hign contrast NationalStar LEDs to ensure our LED display excellent performance, wide view angle and good consistency which meet the need of high definition, high refresh rate, high gray scale and keep natural color at one time with best color uniformity.

2:Best Driver IC

3: Ultra HD perfect picture quality

It delivers a truly amazing picture in every details with extrodinary pixels producing an image that is HD quality in an LED screen. 16bits gray processing technology, with 65536 grayscale, excessive nature, according to the video picture of extremely fine texture, looked more comfortable.

4: Unique Design and Good Color Uniformity

4:3 design. Cabinet’s 4:3 resolution is specialized for command center. Top-lever brightness control. Expansionof brightness adjustment range increase the brightness and contrast ratio of picture, this function can fully perform delicate change of brightness, so it can present a vivid clear picture to audience.

5: Larger viewing area

Vertical/horizontal: 160°/160°. Ultra wide angle of view, from any perspective images are clear natural, to experience the great subversive viewing experience.
