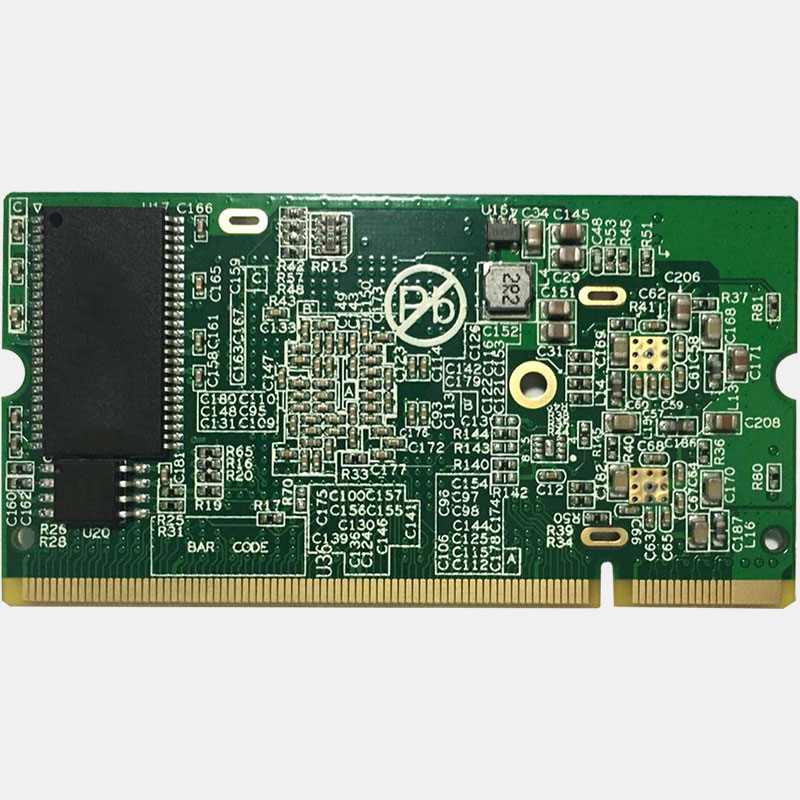

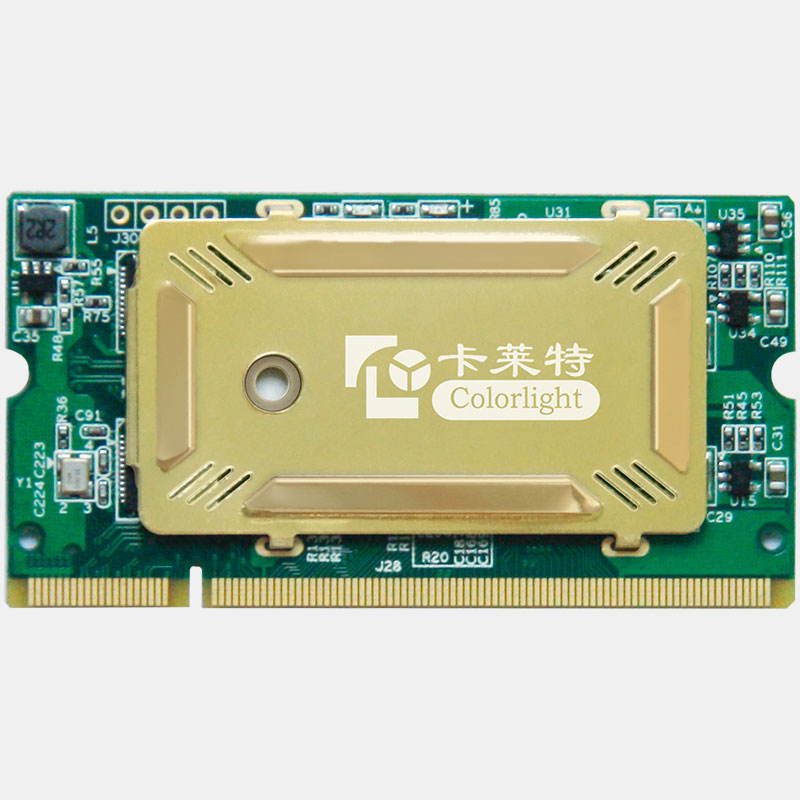

i5 LED Receiver Card

Click Here to Get Factroy Price LED Display and LED Modules

Colorlight i5 LED Display Receiver Card, LED Control System Receiving Card, Support 32 groups of RGB signal output, Large load capacity of 256*256 pixels for each card.

Colorlight i5 LED Screen Receiving Card is COLORLIGHT special introduced high-end and all-purpose receiver card , featuring a small size with 68*36mm; it is adopt DDR2 SODIMM interface, can be easily integrated into the HUB board or unit plate of LED display, and achieves the high integration of the LED display module, which greatly facilitates the design of the LED display unit panel and structure.

PRODUCT FEATURES

Support 32 groups of RGB signal output.
Large load capacity of 256*256 pixels for each card;
ultra small size to convenient design cabinet
Support any scan mode from static to 1/32 scan;
Support various free form display, spherical display, creative display, etc.
Support the receiver card double backup and power supply double backup;
Support high-precision point-by-point calibration in the brightness and the chromaticity;
Superior versatile, supporting Gigabit Ethernet, T7H sending card, T7 sending card, Q7 HD transmitter, network video system, etc. all sending device
Wide working voltage range with DC3.3 -6V; ;
