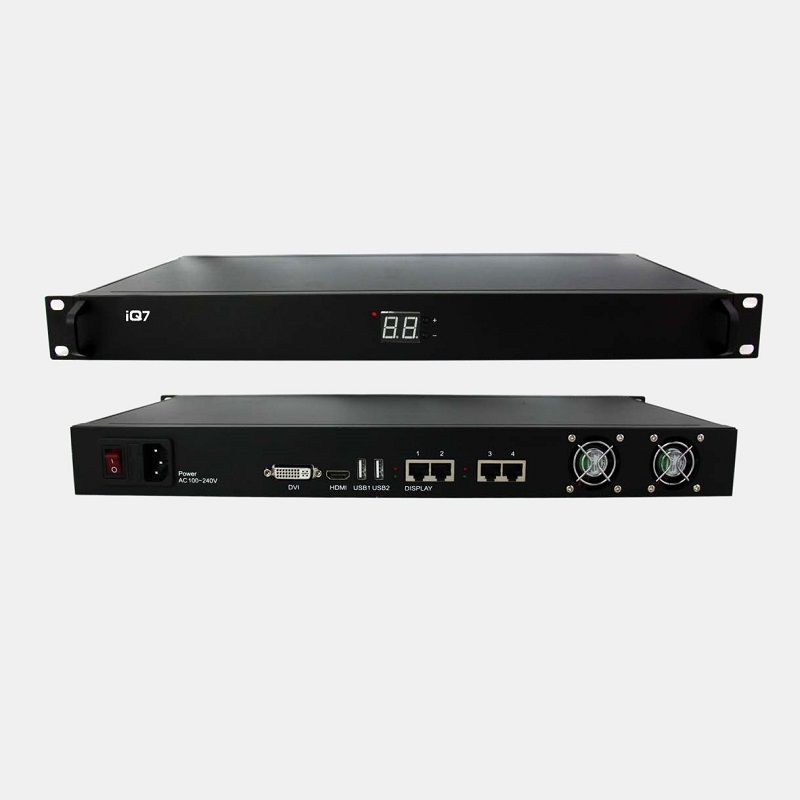

iQ7 HD Sender

Click Here to Get Factroy Price LED Display and LED Modules

Colorlight iQ7 HD Sender is specially designed for large LED displays to solve high-definition display. iQ7 with powerful video signal receiver ability, supports HDMI high-definition data interface, with 4 Gigabit Ethernet port output, supports DVI and HDMI video input, the maximum input resolution of 2560 * 1600 pixels. iQ7 supports 12bit high number color input; with high-speed dual USB and PC communication. iQ7 supports cascading, the operation more simple and convenient.In addition to having all the technical advantages as Colorlight iT7 sending card has, iQ7 also has a rich set of useful features, has many advantages in production testing, engineering applications.

PRODUCT FEATURES

1: Four Gigabit Ethernet ports output. Each port can control an area within 655360 pixels.
2: Single card supports a maximum resolution of 2560 * 1600 pixels, such as 1024*768, 1280*720, 1280*1024, 1600*768, 1920*640, 1920*1080, etc.
3: USB interface for controlling and configuring.
4: Single card supports LED display with any resolutions that the total quantity of pixels is less than 2621440 pixels, e.g. 2560*1024,1700*1536, the width up to 2560 pixels, or the height up to 1536 pixels.
5: Supports presetting images that can be showed on the LED display if there is no video input.
6: Supports adjusting brightness of 16 levels by the buttons on the front panel, that the adjustment can be effective immediately and saved automatically.
7: Supports commissioning and aging test the whole LED display without PC.
8: Supports audio input.
9: Supports standard network transmission equipment, such as Fiber Converter, Gigabit Switch.
10: No need to configure the display again when you replace the receiving cards or cabinets.
11: Supports Time Management Function that can follow up and manage the project process.
