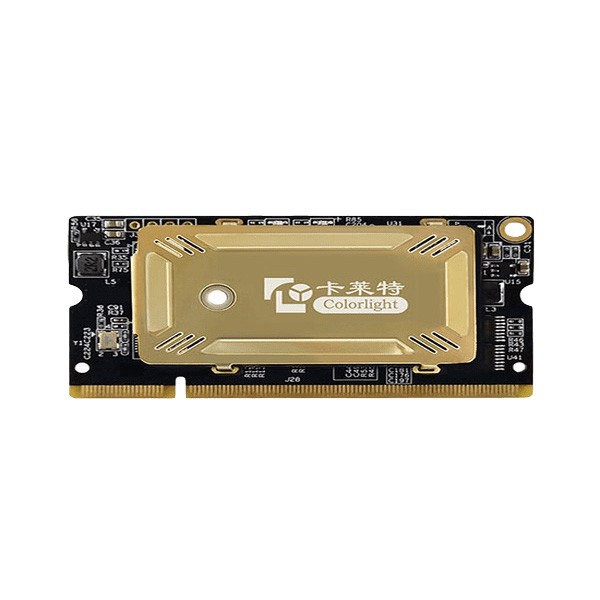

Colorlight i9 LED Receiver Card

Click Here to Get Factroy Price LED Display and LED Modules

Colorlight i9 is a high-end receiving card developed for fine-pitch LED screens featuring a large load capacity and up to 32 parallel data groups or 64 serial data groups. Due to its small form factor, i9 is best fit into concise cabinets. With DDR2 SODIMM interface, it can be effortlessly integrated into the HUBS and the display modules, allows for flexible screen design.

i9 not only has all the functions of mainstream receiving cards, but also a series of practical and powerful features helping high-end displays to maximize video performance with stunning clarity. i9 can be perfectly used in high-end rentals as well as fine-pitch fix-installed LED screens.

Features

Display effect

• 8bit/10bit video source input.

• HDR10 and HLG.

• 10bit full gamma independent adjustment.

• Infi-bit color extension.

• Low latency.

• Color temperature adjustment.

•Grayscale refinement.

•Better gray at low brightness.

Calibration

• High precise per-pixel calibration in brightness and chromaticity.

Easy maintenance

• Seam correction.

• Highlight and OSD.

• Color gamut adjustment.

• Screen rotation.

• Up to 8 intelligent modules.

• Quick firmware upgrade and calibration coefficients download.

• Cabinet temperature, humidity, power and fan monitoring.

Stable and reliable

• Loop redundancy.

• Dual receiving card hot backup.

• PSU redundancy.

• Firmware redundancy and readback

• Ethernet cable status monitoring.

PRODUCT SPECIFICATION

Colorlight i9 Specification (PDF Version)
