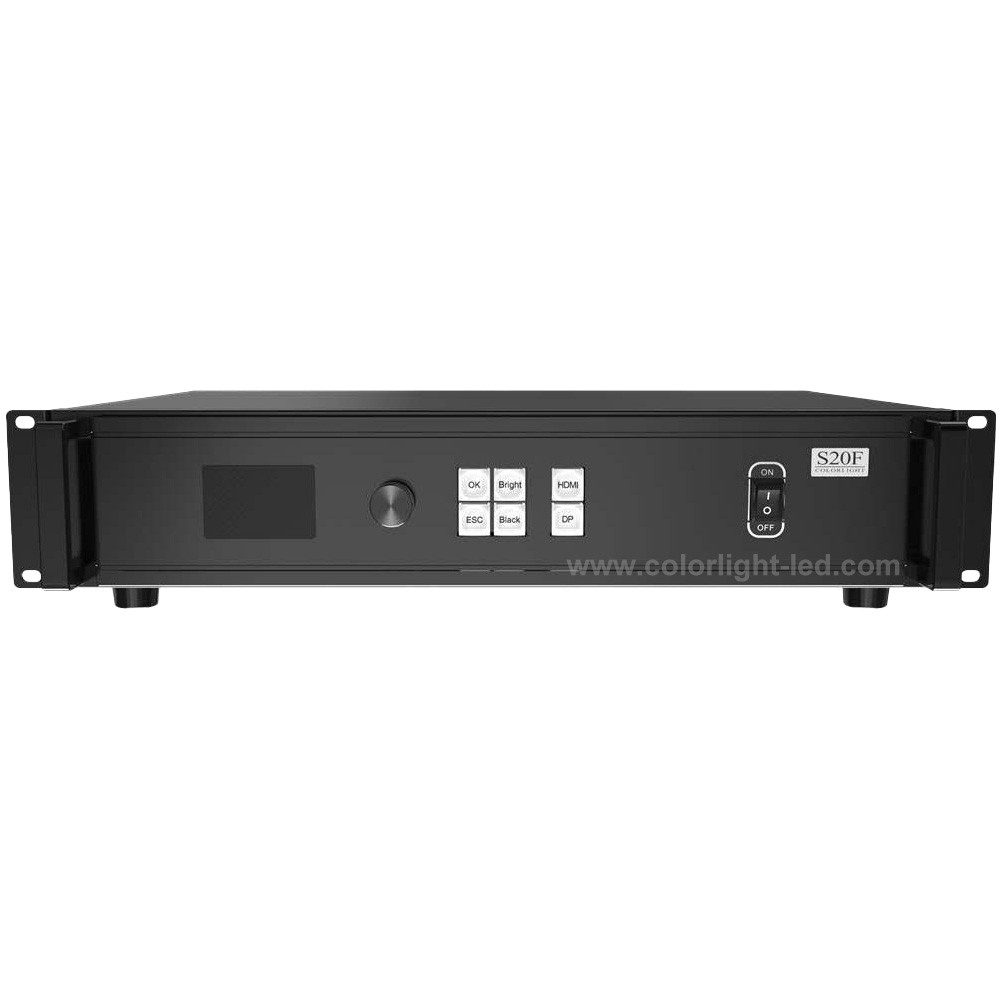

Colorlight S20F LED Video Controller

Click Here to Get Factroy Price LED Display and LED Modules

Colorlight S20F is a controller possessing powerful video signal receiving capacity. It supports the input of DP1.2 and HDMI2.0, and seamless switching between signal sources. A single unit features a loading capacity of up to 8.85 million pixels, with a maximum width or height of 8192 pixels, while a single Ethernet port supports a loading width or height of up to 4096 pixels, and the controller supports signal inputs of up to 4096×2160@60Hz resolution. Thus, S20F allows users to configure ultra-long, ultra-high and ultra-large screens. S20F supports 4 optical fiber port output (2 active and 2 standby), as well as Ethernet port redundancy and controller redundancy. It can not only effectively ensure the display stability of screens, but also provide high- quality image display and flexible screen control.

PRODUCT FEATURES

Input: 1X DP 1.2, 1X HDMI 2.0

Support seamless switching between signal sources

Loading capacity: up to 8.85 million pixels, maximum width or height: 8192 pixels

4 optical fiber outputs, 2 active and 2 standby, single optical port transmission rate 10Gb/s

Input resolution: up to 4096×2160@60Hz, supporting customized setting of resolution within control range

Support Ethernet port redundancy or controller redundancy

Support USB cascading control and RS232 protocol control

Separate audio input and output

Support 3D display (optional) →Better gray at low brightness

PRODUCT SPECIFICATION

Colorlight S20F Specification (PDF Version)

PRODUCT USER MANUAL

Colorlight S20F USER MANUAL (PDF Version)

PRODUCT FIRMWARE

Colorlight S20F Firmware V1.0
