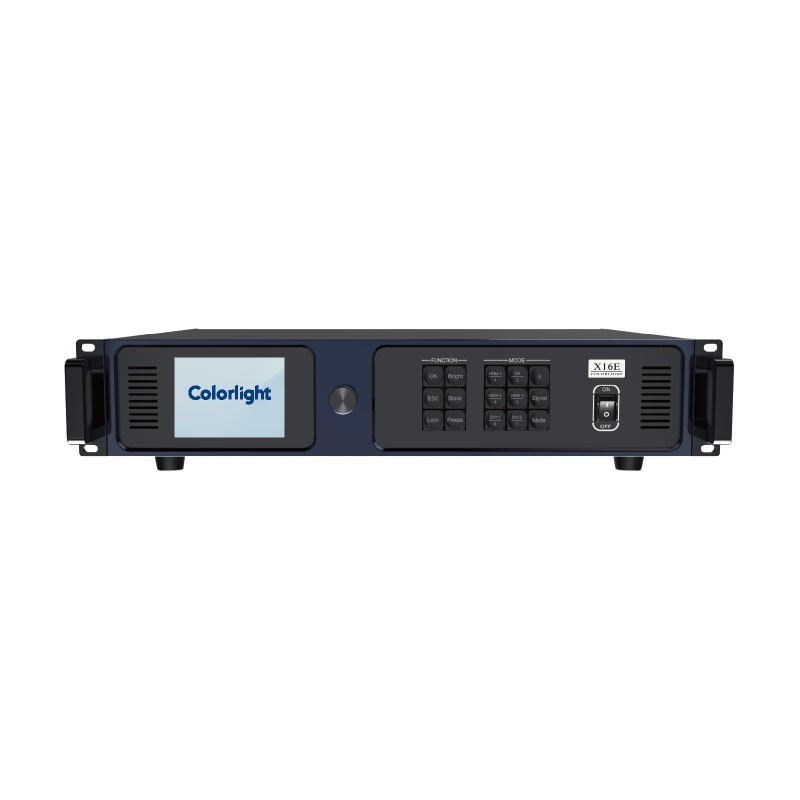

Colorlight X16E LED Video Controller

Click Here to Get Factroy Price LED Display and LED Modules

Colorlight X16E LED controller is a controller possessing powerful video signal input and processing capacity. It supports 4K inputs with DP 1.2 and HDMI 2.0 ports, and 2K inputs with HDMI 1.4 and DVI ports, and the multiple signals can be seamlessly switched. Equipped with 16 Gigabit Ethernet ports, the controller can greatly meet your different demands. Additionally, X16E boasts abundant practical functions that enable flexible screen control and high-quality image display.

PRODUCT FEATURES

. Input ports: 1×DP 1.2,1×HDMI2.0, 2×HDMI1.4,2×DVI.

. Loading capacity:10.48million pixels, maximum16384 pixels in width, or maximum8192 pixels in height.

. Input resolution: up to 4096×2160@60Hz, supporting customized settings.

. Output ports: 16×GigabitEthernet port.

. Video source switching, cropping, splicing, and scaling.

. Up to 6 windows of which the location and size can be freely adjusted.

. Precise color management and displaygamut adjustment.

. Video sync.

. Separate audio input and output.

. Analyzing and outputting the audio signals of HDMI and DP inputs.

. LAN control.

. Control via hand-held terminal (app).

. RS232 protocol control.

. 3D (optional).

. HDCP(Only HD interface support).

. Brightness and color temperature adjustment.

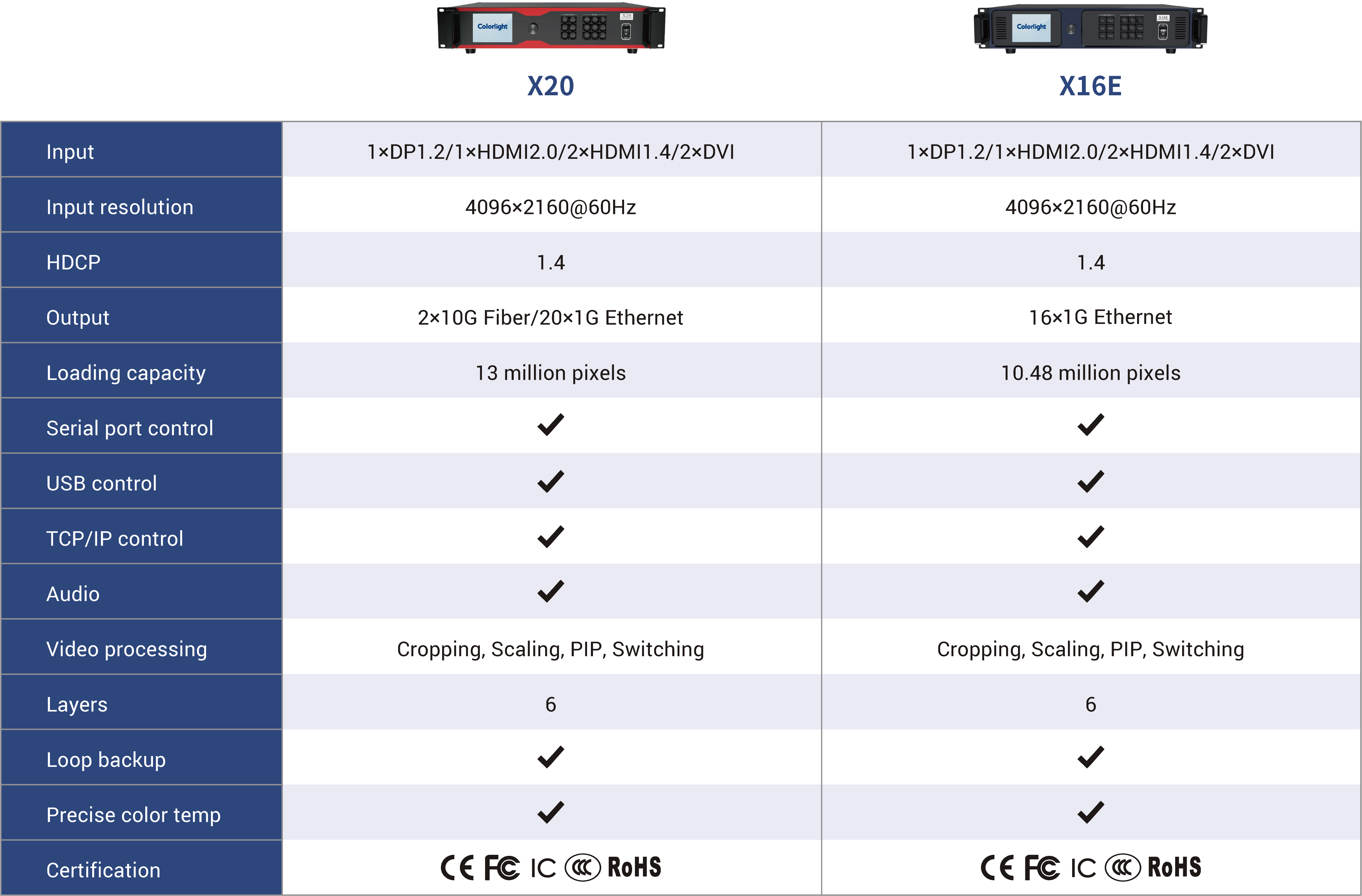

The Comparsion of X20 and X16e

PRODUCT SPECIFICATION

Colorlight X16E Specification V1.1 (PDF Version)

PRODUCT OPERATING MANUAL

Colorlight X16E User Quick Start Guide V1.1 (PDF Version)
