Colorlight X20m LED Video Controller

Click Here to Get Factroy Price LED Display and LED Modules

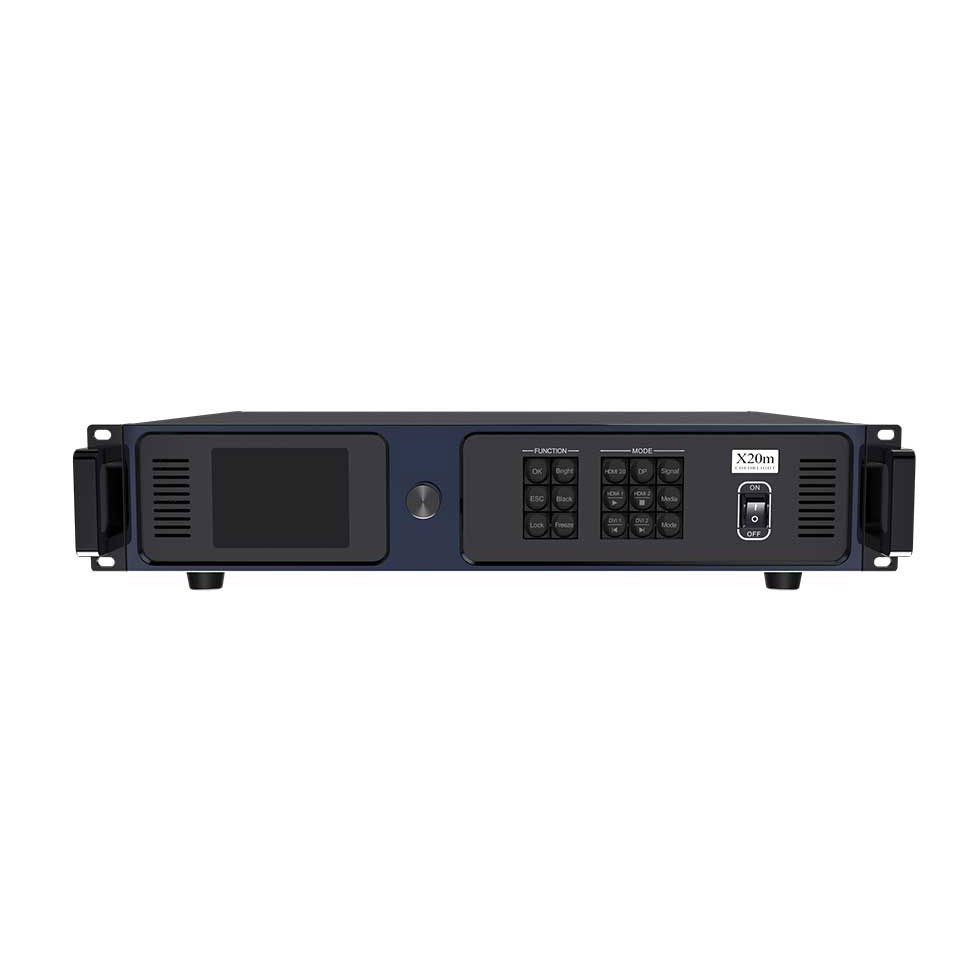

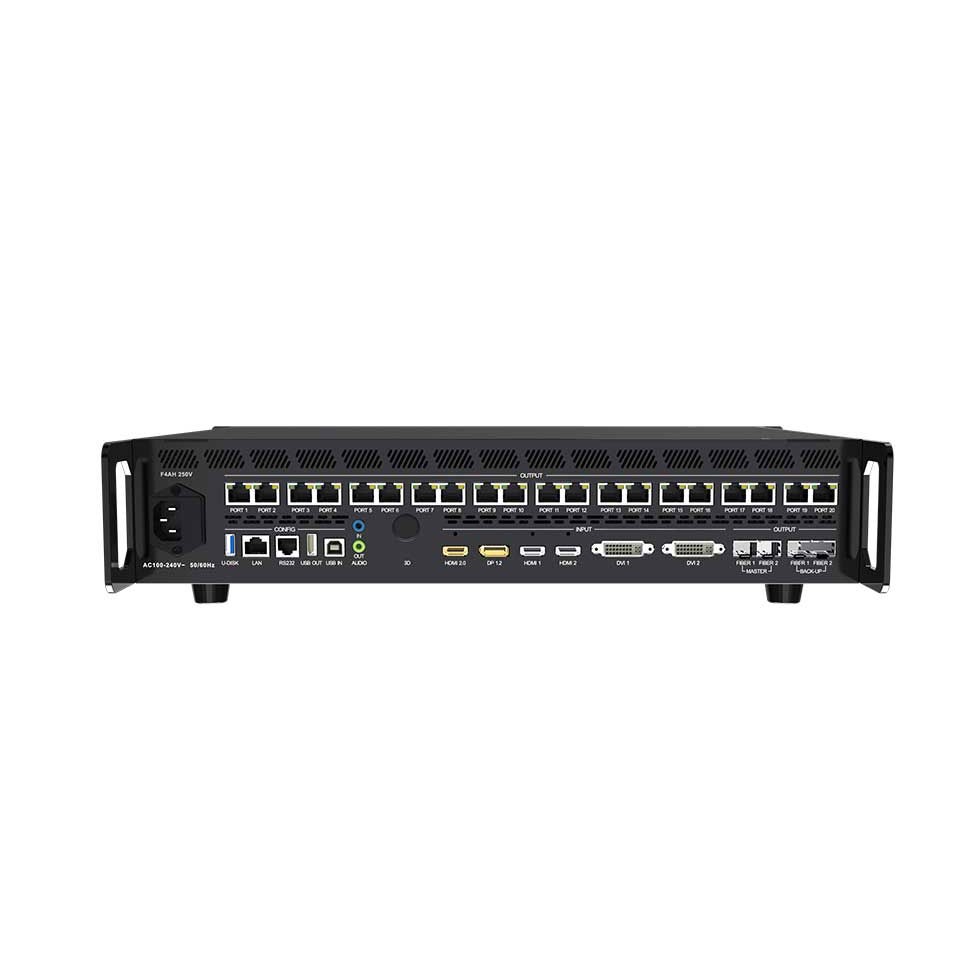

Colorlight X20m LED controller is a LED display video controller with powerful video input and processing capacity. It supports 4K inputs with DP 1.2 and HDMI 2.0 connectors, and 2K inputs with HDMI 1.4 and DVI connectors. A single unit features a loading capacity of 13.10 million pixels. Equipped with 20 gigabit Ethernet ports and 4×10G optical fiber ports, X20m can meet the needs of different clients. Additionally, the X20m boasts abundant practical functions that enable flexible screen control and high-quality image display.

PRODUCT FEATURES

Input

. Maximum4096×2160@60Hz.

. 4K input interface:1×DP1.2,1×HDMI2.0.

. 2K input interface:2×HDMI1.4,2×DVI.

. U-DISK interface:1×USB3.0.

Output

. Maximum loading capacity 13.10 million pixels.

. 20 Gigabit Ethernet ports output or 4×10 Gigabit optical ports output.

Audio

. 1× 3.5mminput.

. 1×3.5mm, support HDMI and DP audio outputs.

Function

. Up to 6 window displays, 1 layer per window.②

. Support freely moving the window, the size is at least 64×64.

. Support free cropping and seamless switching, the size is at least 64×64.

. Adjusting the display color gamut with precision color management, it needs corresponding specific receiving cards.

. lock internal sync, input signal source frame, and automatic phase locking (according to the layer).

. Bright and color temperature adjustment with precision.

. 3Ddisplay(purchase separately).

. Better grayscale at low brightness for improving the grayscale performance in low brightness.

. 128 scene parameters can be saved and recalled.

. Upgrade the program and play photos, and videos with U-disk.

. OSD is used to play videos, and pictures and adjust the screen display(optional).

Control

. USB port for control and cascading.

. RS232 protocol.

. LAN port for TCP/IP control.

. Android APP for phones and tablets.

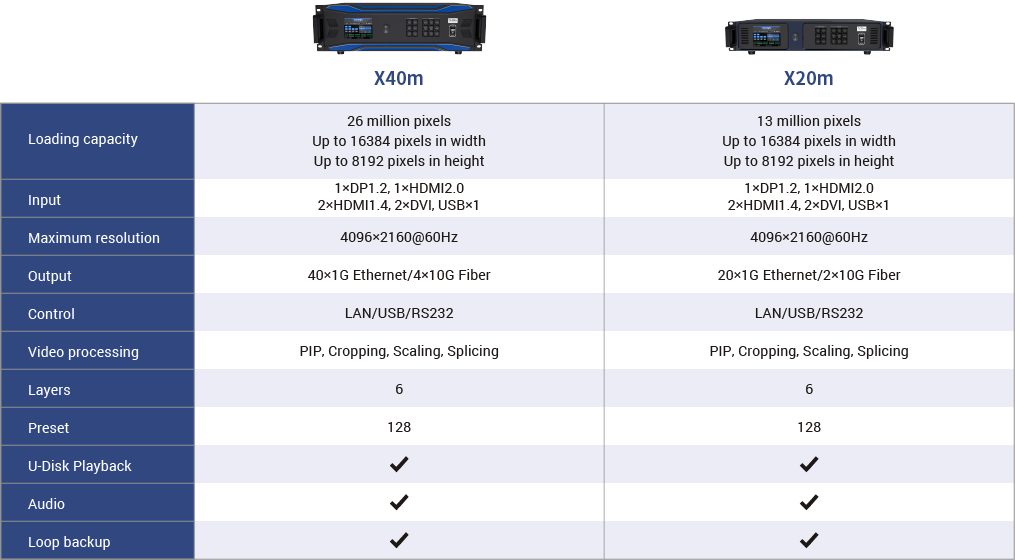

The Comparsion of X40m and X20m

PRODUCT SPECIFICATION

Colorlight X20m Specification V1.1 (PDF Version)

PRODUCT OPERATING MANUAL

Colorlight X20m User Quick Start Guide V1.2 (PDF Version)
