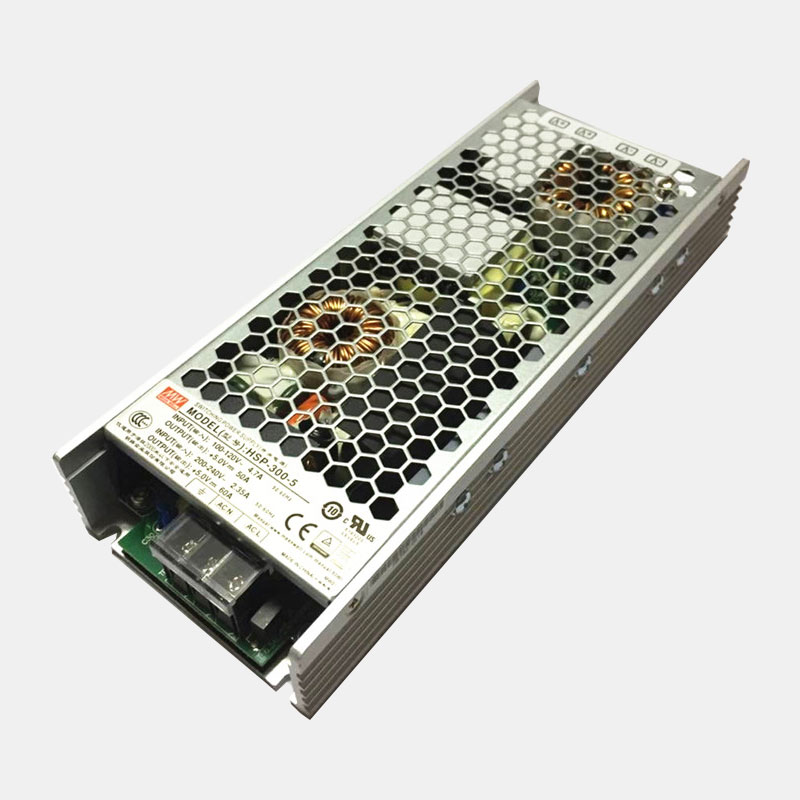

| Product Category | Switch Power Supply |
| Manufacturer | MEAN WELL |
| Product | Switching Supplies |
| Output Voltage-Channel 1: | 5 VDC |
| Number of Outputs: | 1 Output |
| Output Power | 300 W |
| Open Frame/Enclosed: | Enclosed |
| Input Voltage | 90 VAC to 264 VAC, 127 VDC to 370 VDC |
| Ouput Current-Channel 1: | 60 A |
| Industry: | Commercial |
| Isolation Voltage: | 3 kVAC |
| Mounting Style: | Chassis |
| Length: | 210 mm |
| Witdh:1 | 81 mm |
| Height: | 31 mm |
| Approvals: | UL60950-1 |
| Series: | HSP-300 |
| Brand: | MEAN WELL |
| Input Frequency: | 47 Hz to 63 Hz |
| Load Regulation: | Regulated |
| Unit Weight: | 1.764 lbs |
•Universal AC Input / Full range
•Withstand 300VAC surge input for 5 seconds
•Built-in active PFC function
•Low leakage current <1 mA
•Protections: Short circuit / Overload / Over voltage / Over temperature
•Cooling by free air convection
•Low profile:31mm
•conformal coated
•LED indicator for power on
•Suitable for high efficiency moving sign applications
