| Product Category | Switch Power Supply |
| Manufacturer | MEAN WELL |
| Product | Switching Supplies |
| Output Voltage-Channel 1: | 5 VDC |
| Number of Outputs: | 1 Output |
| Output Power | 300 W |
| Open Frame/Enclosed: | Enclosed |
| Input Voltage | 90 VAC to 132 VAC/180 VAC to 264 VAC, 240 VDC to 370 VDC |
| Ouput Current-Channel 1: | 60 A |
| Industry: | Commercial |
| Isolation Voltage: | 3 kV |
| Mounting Style: | Chassis |
| Length: | 215 mm |
| Witdh:1 | 115 mm |
| Height: | 30 mm |
| Approvals: | UL60950-1 |

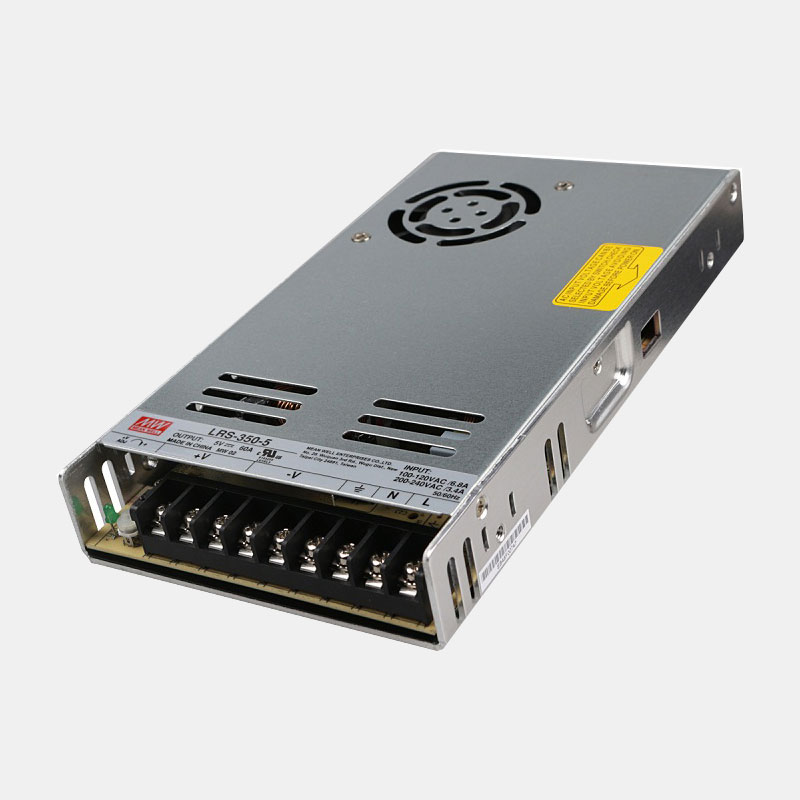

| Series: | LRS-350 |
| Brand: | MEAN WELL |
| Input Frequency: | 47 Hz to 63 Hz |
| Load Regulation: | Regulated |
| Unit Weight: | 1.676 lbs |
• AC input range selectable by switch
• Withstand 300VAC surge input for 5 second
• Protections: Short circuit / Overload / Over voltage /Over temperature
• Forced air cooling by built-in DC fan
• Built-in cooling Fan ON-OFF control
• 1U low profile
• Withstand 5G vibration test
• LED indicator for power on
• No load power consumption<0.75W
• 100% full load burn-in test
• High operating temperature up to 70°C
• Oaltitude up to 5000 meters Note 8perating(.)
• High efficiency, long life and high reliability
