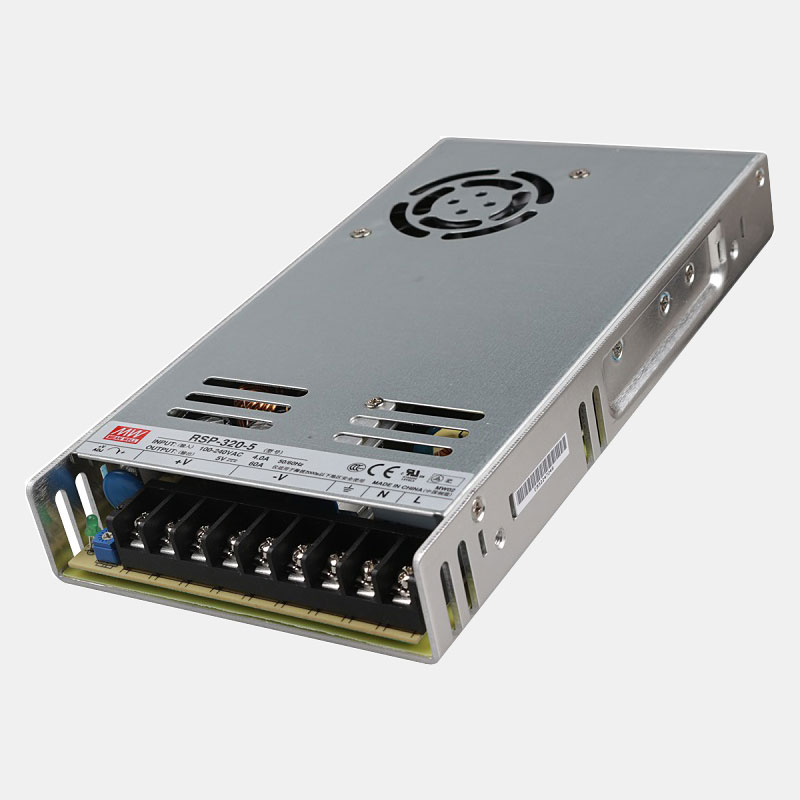

| Product Category | Switch Power Supply |
| Manufacturer | MEAN WELL |
| Product | Switching Supplies |
| Output Voltage-Channel 1: | 5 VDC |
| Number of Outputs: | 1 Output |
| Output Power | 300 W |
| Open Frame/Enclosed: | Enclosed |
| Input Voltage | 88 VAC to 230 VAC, 124 VDC to 370 VDC |
| Ouput Current-Channel 1: | 60 A |
| Industry: | Commercial |
| Isolation Voltage: | 3 kVAC |
| Mounting Style: | Chassis |
| Length: | 215 mm |
| Witdh:1 | 115 mm |
| Height: | 30 mm |
| Approvals: | UL60950-1 |
| Series: | RSP-320 |
| Brand: | MEAN WELL |
| Input Frequency: | 47 Hz to 63 Hz |
| Load Regulation: | Regulated |
| Unit Weight: | 2 lbs |
• Universal AC input / Full range
• Built-in active PFC function, PF>0.95
• High efficiency up to 90%
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Forced air cooling by built-in DC Fan with fan speed control function
• 1U low profile 30mm
• □Optional conformal coating models (RSP-320- CC)
• LED indicator for power on
