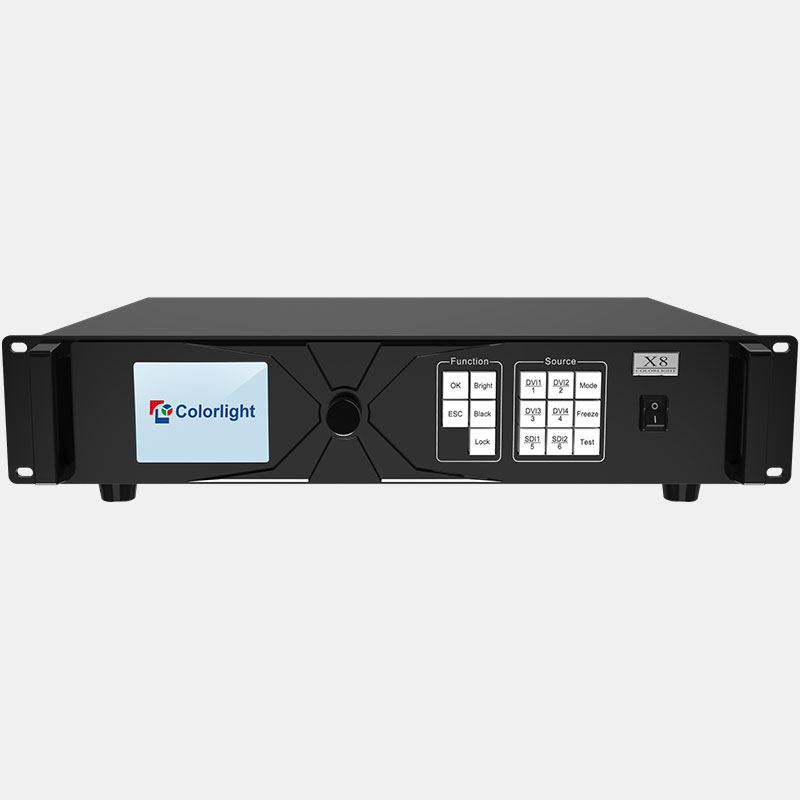

X8 LED Controller

Click Here to Get Factroy Price LED Display and LED Modules

Colorlight X8 is a professional LED display controller. It possesses powerful video signal receiving, splicing and processing capacities, and supports multiple signal inputs, in which the maximum input resolution is 1920×1200 pixels. It supports digital ports (DVI and SDI), and seamless switching between signals. It supports splicing, broadcast quality scaling, and five-layers displays.

PRODUCT FEATURES

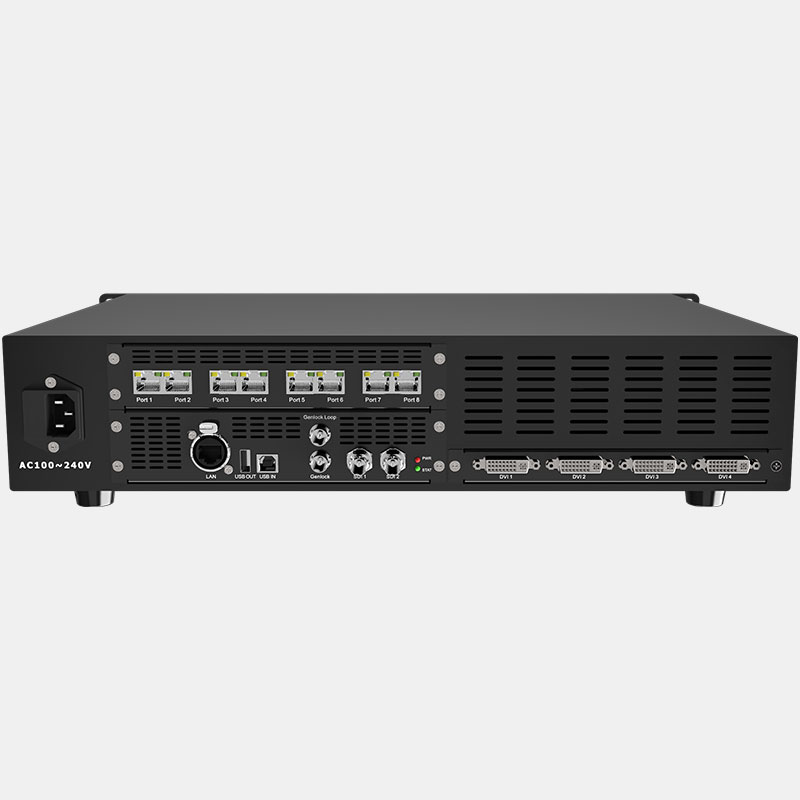

•Supports various digital signal ports, including 4×DVI and 2×SDI
•Supports input resolutions up to 1920×1200@60Hz
•Loading capacity: 5 million, maximum width/height: 8192 pixels
•Supports arbitrary switching of video sources; the input images can be spliced and scaled according to the screen resolution
•Supports five-layers displays, the location and size can be adjusted freely
•Supports 16 kinds of preset modes, the saved preset parameters can be loaded at any time according to needs
•Dual USB2.0 for high speed configuration and easy cascading among controllers
•Supports brightness and chromaticity adjustments
•Supports improved gray-scale performance at low brightness
•Compatible with all receiving cards, multifunction cards, and optical fiber transceivers of Colorlight
