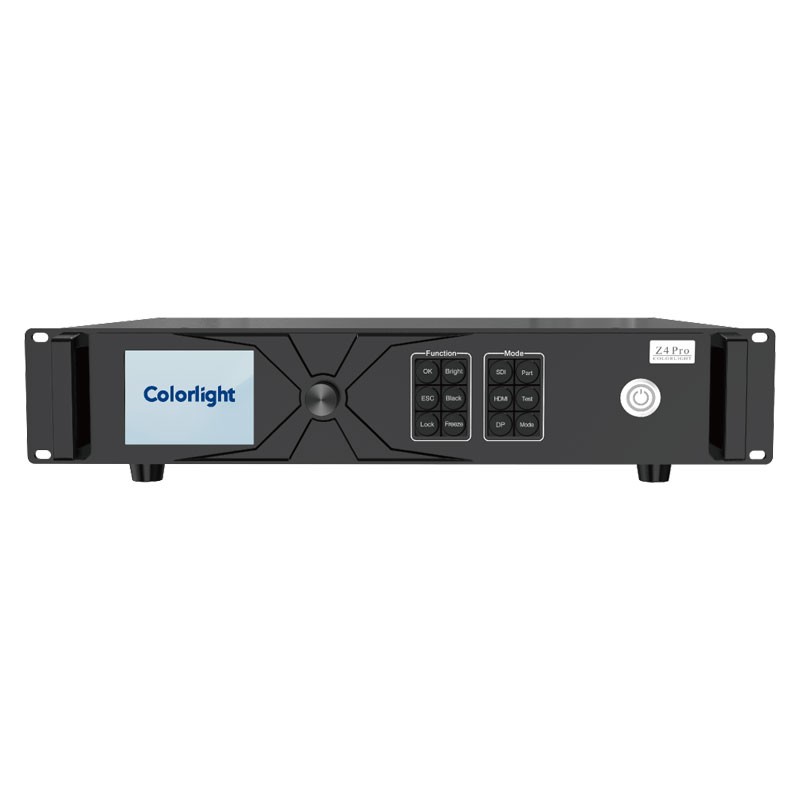

Colorlight Z4 Pro LED Controller

Click Here to Get Factroy Price LED Display and LED Modules

Colorlight Z4 Pro, a new generation of professional LED video controller, is designed specially to meet the ultra-low latency display, HDR, and wide color gamut needs of live events, broadcasts, television, filming, and other scenarios, where real-time, low-latency processing and color fidelity is required for Ultra HD image and LED display control. Z4 Pro includes features providing excellent visual effects for users.

PRODUCT FEATURES

Input
. Full 4K inputs: HDMI2.0, DP1.2, 12G-SDI.
. Single port supports up to 4096 ×2160@60Hz.
. Support 8bit/ 10bit video signal input.
. Support HDCP1.4/HDCP2.2.
. Support input frame rate from 23.98Hz to 240Hz.

Output
. Maximum capacity of 6.55 million pixels, with a maximum of 16384 pixels in width and a maximum of 8192 pixels in height.
. 10-channel Gigabit Ethernet port output; 1-channel 10 Gigabit fiber port output.
. Support output frame rate of 23.98Hz to 240Hz.
. Support both Ethernet port redundancy and controller redundancy.

Video processing
. Video cropping, broadcasting level switching, and scaling.
. Upto 3-window display, support 1-channel 4K and 2-channel HD signal display.
. Low latency, minimum one-frame delay.
. HDR10 / HLG display.
. Genlock function.

Color adjustment
. Picture adjustment for hue, saturation, contrast, and brightness compensation.
. Brightness adjustment, support network port grouping brightness adjustment.
. Color temperature adjustment with precision and RGB independent adjustment.

Control
. Two USB ports for control and cascading. One for connecting to a PC for debugging or cascading input. One for cascading output
. RS232 port. With a 115200 baud rate for connecting to the third-party device.
. LAN port for TCP/IP control. Connect to a computer, connect to a switch for accessing the local area network, or act as an Art-net control port.
