VDWALL LedSync820H LED Video Processor

Click Here to Get Factroy Price LED Display and LED Modules

VDWALL LedSync820H LED Video Processor, MINI HD LED display video processor, LED screen Video processor. can working with LINSN control system, Nova control system, Colorlight control system such as S2 sender card.

PRODUCT FEATURES

1. 10+ Bit Faroudja® DCDI Cinema Processing
2. New Faroudja® Real Color®
3. Faroudja® TureLife™ Video Enhancer
4. Advanced 4x4 Pixels Interpolation Scaling Algorithm
5. HDMI 1.3a with HDCP, HD 1080p input
6. 10-bit Processing
7. Seamless Switching, Fade-in / Fade-out and blend switching
8. PIP/POP display
9. 1920x1080 output for single machine
10. Easy setup and adjustment through knob and keys on the panel. Full design RS232 command for operating and setting.

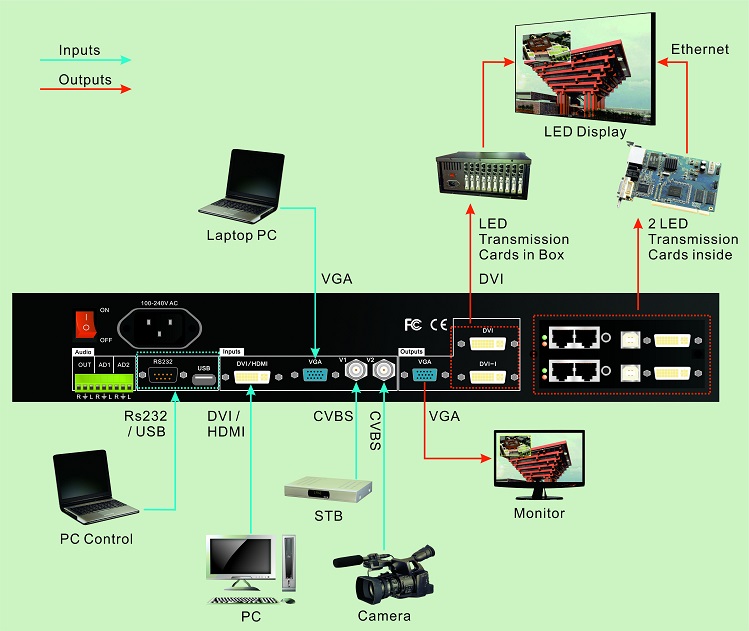

11. Press keys or knob on frontal panel to directly select 10-channel input signal source, including:2×CVBS 1×DVI/HDMI 1×VGA
12. 2 channels can be configured to connect external stereo audio, plus DVI/HDMI audio, there are 3-channel audio for synchronous switch
13. 2 LED Transmission Cards Built-in ability (sending cards are optional)
14. 24/7 Application

PRODUCT SPECIFICATION

Inputs
Nums/Type	2×Composite 1×VGA（RGBHV） 1×DVI（HDMI）（1.3a with HDCP ）
Video system	PAL/NTSC
Composite Video Scope/Impedance	1V（p_p）/ 75Ω
VGA Format	PC（VESA）	≤2048x1152 @60Hz
VGA Scope/Impedance	R、G、B = 0.7 V（p_p）/ 75Ω
DVI /HDMI 1.3 Format ( HDCP )	SD/HD（CEA -861）	≤1920x1080P @60Hz
	PC（VESA）	≤2048x1152 @60Hz
AUDIO Scope/Impedance	2.0Vp-p/10K?
Input Connectors	VGA：15pin D_Sub(Female) DVI：24+1 DVI_D Composite：BNC
Outputs
Nums/Type	1×VGA（RGBHV） 2×DVI
VGA/DVI Format	1024×768@60Hz/75Hz 1280×1024@60Hz/75Hz 1600×1200@60Hz 1920×1080p@50Hz/60Hz 1366×768@60Hz 1440×900@60Hz
VGA Scope/Impedance	R、G、B = 0.7 V（p_p）/ 75Ω
Output Connectors	VGA OUT：15pin D_Sub(Female) DVI OUT1：24+5 DVI_I DVI OUT2：24+1 DVI_D
Others
Control	Panel Button,RS232/USB
Power	100-240VAC 35W 50/60Hz
Operating Temp	5-40 ℃
Humidity	15-85%
Dimensions（Package）	145 mm (height) ×370mm (width) ×535mm (length)
Weight（G.W.）	5.0 Kg
Weight（G.W.）	3.2 Kg
