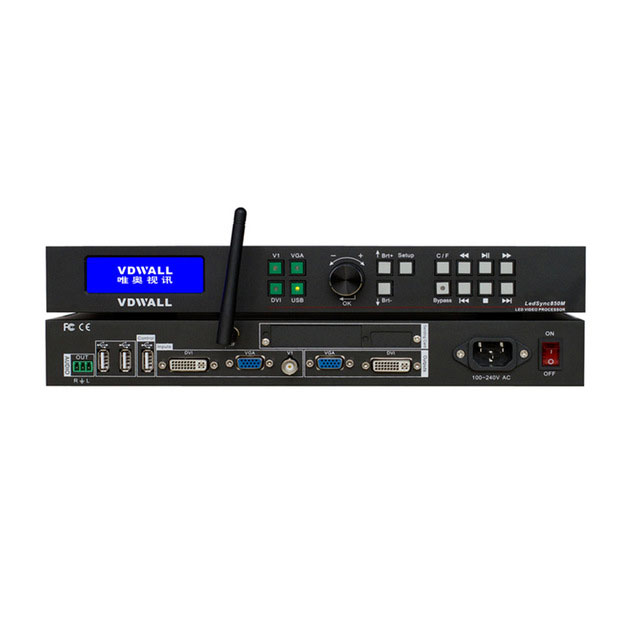

VDWALL LedSync850M LED Video Processor

Click Here to Get Factroy Price LED Display and LED Modules

VDWALL LedSync850M LED Video Processor, MINI HD LED display video processor, LED screen Video processor. can working with LINSN control system, Nova control system, Colorlight control system such as S2 sender card.

PRODUCT FEATURES

1. The latest broadcast video processing technology brings clearer and more fluent images, more brilliant colors and more vivid scenes
2. 10+ Bit Faroudja® DCDI Cinema Processing
3. New Faroudja® Real Color®
4. Built-in HD multi-media player, USB2.0, video and image playing by USB supported
5. Online real-time VOD through Wi-Fi supported
6. DVI is HDMI 1.3a ( with HDCP ) compatible, HD 1080P input
7. Seamless switching or Fade-in / Fade-out between three groups of input signals ( Video, VGA, DVI / USB )
8. Maximum output resolution of single unit: 1920 x 1080
9. Switching 4 input signals ( 1 x video, 1 x VGA, 1 x DVI, 1 x USB ) by one key
10. USB HD multi-media player supports stereo audio output
11. Easy setup and adjustment through knob and keys on the panel, Full-design USB protocol for operating and setting 12. Convenient operation, compact structure and easy carrying
13. One sending card built-in ability and the structure design is compatible with most of sending cards available on the market
14. 24 / 7 application, high reliability and stability

PRODUCT SPECIFICATION

Inputs
Type/Number	1×Video 1×VGA（RGBHV） 1×DVI（HDMI1.3） 1×USB2.0
Video System	PAL/NTSC
Composite Video Amplitude/Impedance	1V（p_p）/ 75Ω
VGA format	PC（VESA）	≤1920x1080_60Hz
VGA Amplitude/Impedance	R、G、B = 0.7 V（p_p）/ 75Ω
DVI format	PC（VESA standard）	≤1920x1080_60Hz
	HDMI1.3（CEA-861）
USB2.0	Video Format	mkv、ts、avi、wmv、rmvb、mpeg、mpg、mp4、vob、mov、asf
	Video Coded Format	H.265、H.264(AVC HD)、VC-1(WMV HD)、MPEG-2 HD、MPEG-1、MPEG-4、Xvid
	Picture Format	JPG、PNG、BMP, the largest pixel 15 million
Input Connectors	Video：BNC VGA：15pin D_Sub(female) DVI：24+1 DVI_D USB: A type
Outputs
Type/Number	1×VGA（RGBHV） 1×DVI
VGA/DVI format	1024×768_60Hz/75Hz 1280×1024_60Hz/75Hz 1366×768_60Hz 1440×900_60Hz 1600×1200_60Hz 1920×1080p_50Hz/60Hz
VGA output Amplitude	R、G、B = 0.7 V（p_p）/ 75Ω
Audio output	2.0Vp-p/10K?
Output connectors	VGA OUT：15pin D_Sub(female) DVI OUT：24+1 DVI_D
Others
Control	Panel/ PC software
Input Voltage	100-240VAC 50/60Hz
Power Consumption	≤20W
Environment Temperature	0-45℃
Environment Humidity	15-85%
Size（packing）	385（L）x 280mm（W）x 120mm（H）
Weight	G.W.2.8Kg N.W. 1.7Kg
