VDWALL LVP605 LED Video Processor

Click Here to Get Factroy Price LED Display and LED Modules

VDWALL LVP605 LED Video Processor, High quality HD LED display video processor, LED screen Video processor.. can working with LINSN control system, Nova control system, Colorlight control system such as S2 sender card.

PRODUCT FEATURES

1. 10+ Bit Faroudja® DCDI Cinema Processing
2. New Faroudja® Real Color®
3. Faroudja® TureLife™ Video Enhancer
4. Advanced 4x4 Pixels Interpolation Scaling Algorithm
5. HDMI 1.3a with HDCP, HD 1080P input
6. SDI / HD-SDI / 3G-SDI (1080P) Input
7. 10-bit Processing
8. Seamless Switching, Fade-in / Fade-out switching & Blend switching in random input signals
9. HD Text, Flash, Graphics & Logo Overlay
10. 4 custom PIP / POP display modes, which can be switched by pressing one button
11. Hot Spare function, display will be stable and reliable
12. Picture Freeze function
13. AIAO( Any In Any Out ) function allows for displaying any capturing picture in specific area on the screen
14. 2304 x 1152 or 2560 x 816 output for single machine
15. Multi-machine in parallel, multi-unit installed in parallel drive indefinite LED lattice
16. Easy setup and adjustment through knob and keys on the panel. Full design RS232 command for operating and setting

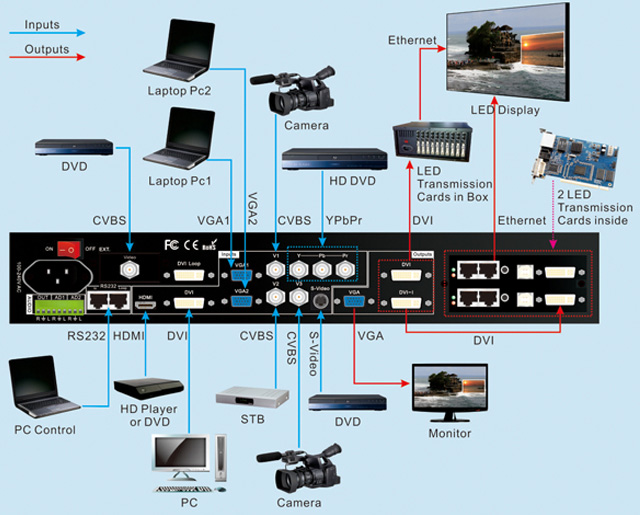

17. Press keys or knob on frontal panel to directly select 10-channel input signal source,including:
3×CVBS 1×DVI 1×HDMI
2×VGA 1×YPbPr / YCbCr 1×S-Video
1×EXT.( extended modle , can be VIDEO or SD I / HD-SDI / 3G-SDI or VGA / DVI / HDMI )
18. 2 channels can be configured to connect external stereo audio, plus DVI, HDMI and SDI audio,there are 5-channel audio for synchronous switch
19. 2 LED Transmission Cards Built-in ability ( sending cards are optional )
20. 24 / 7 Application

PRODUCT SPECIFICATION

Inputs
Nums / Type	3×Composite 1×S-Video 1×YPbPr 2×VGA（RGBHV） 1×HDMI（1.3a with HDCP ） 1×DVI（HDMI） 1×EXT.（Extended ）
Video system	PAL / NTSC
Composite Video Scope / Impedance	1V（p_p）/ 75Ω
S-video Scope / Impedance	Y：1.0V（p_p）/ 75Ω，C：0.35V（p_p）/ 75Ω
VGA Format	PC（VESA）	≤2048x1152@60Hz
VGA Scope / Impedance	R、G、B = 0.7 V（p_p）/ 75Ω
DVI Format	SD / HD（CEA -861）	≤1920x1080@60Hz
	PC（VESA）	≤2048x1152@60Hz
HDMI 1.3 Format( HDCP )	SD / HD（CEA -861）	≤1920x1080@60Hz
	PC（VESA）	≤2048x1152@60Hz
YPbPr Format	SD / HD（CEA -861）	≤1920x1080@60Hz
YPbPr Scope / Impedance	Y= 1.0V（p_p）/ 75Ω Pb= 0.35V（p_p）/ 75Ω Pr= 0.35V（p_p）/ 75Ω
SDI format	SDI-SMPTE 259M-C	576i @50Hz 480i @60Hz
HD-SDI 3G-SDI format	HDSDI-SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M	≤1920 x 1080@50Hz / 60Hz
AUDIO Scope / Impedance	2.0Vp-p / 10K?
nput Connectors	VGA：15pin D_Sub( Female ) DVI：24+1 DVI_D YPbPr: BNC×3 Composite：BNC S-VIDEO：4pin mini DIN( Female ) SDI / HD-SDI / 3G-SDI ：BNC
Outputs
Nums / Type	1×VGA（RGBHV） 2×DVI
VGA / DVI 分辨率	1024x768@60Hz / 75Hz 1280×1024@60Hz / 75Hz 1600×1200@60Hz 1920×1080@50Hz / 60Hz 1366×768@60Hz 1440×900@60Hz 2048×1152@60Hz 2304x1152@60Hz 2560X816@60Hz
VGA Scope / Impedance	R、G、B = 0.7 V（p_p）/ 75Ω
Output Connectors	VGA OUT：15pin D_Sub( Female ) DVI OUT1：24+5 DVI_I DVI OUT2：24+1 DVI_D
Others
Control	Panel Button / Knob / RS232
Power	100-240VAC 35W 50 / 60Hz
Operating Temp	5-40 ℃
Humidity	15-85%
Dimensions（Package）	145 mm (height) ×370mm (width) ×535mm (length)
Weight（G.W.）	5.0 Kg
Weight（N.W.）	3.2 Kg
