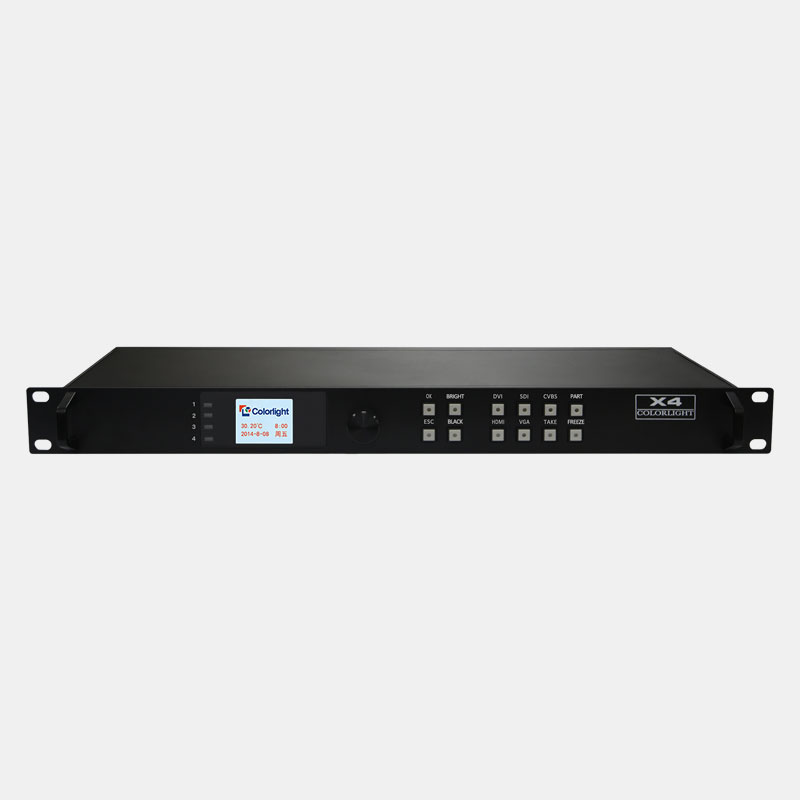

X4 LED Controller

Click Here to Get Factroy Price LED Display and LED Modules

Colorlight X4 is a professional LED display controller, it possesses powerful video signal receiving capacity, and supports multiple signal inputs, in which max input resolution is 1920*1200 pixels. Meanwhile, 4 Gigabit Ethernet outputs support arbitrary splicing.

PRODUCT FEATURES

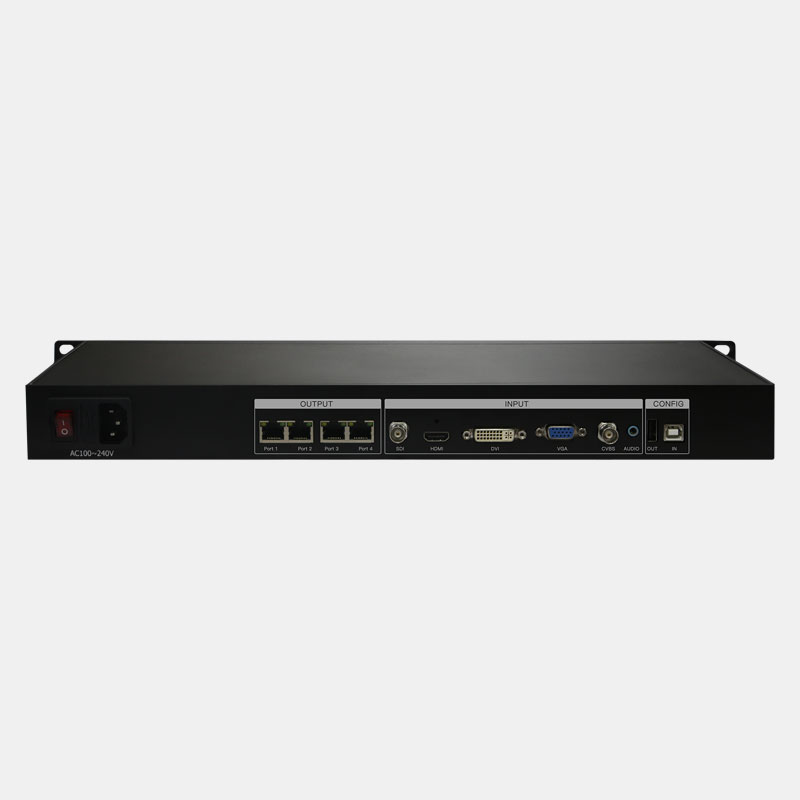

·Video input ports including SDI*1, HDMI*1, DVI*1,VGA*1,CVBS*1;
·Support input resolution up to 1920*1200@60Hz;
·Loading capacity:2.3 million pixels,Maximum Width：4096 pixels, Maximum height: 2560 pixels;
·Support arbitrary switching of video input, and the image can be zoomed freely;
·Dual USB2.0 for high speed configuration and easy cascading;
·Support splicing and cascading among several controllers with synchronization strictly;
·Support brightness and chromaticity adjustment;
·Support improved gray-scale at low brightness;
·Support HDCP1.4；
·Compatible with all receiving cards , multifunction card, optical fiber transceivers of Colorlight.
