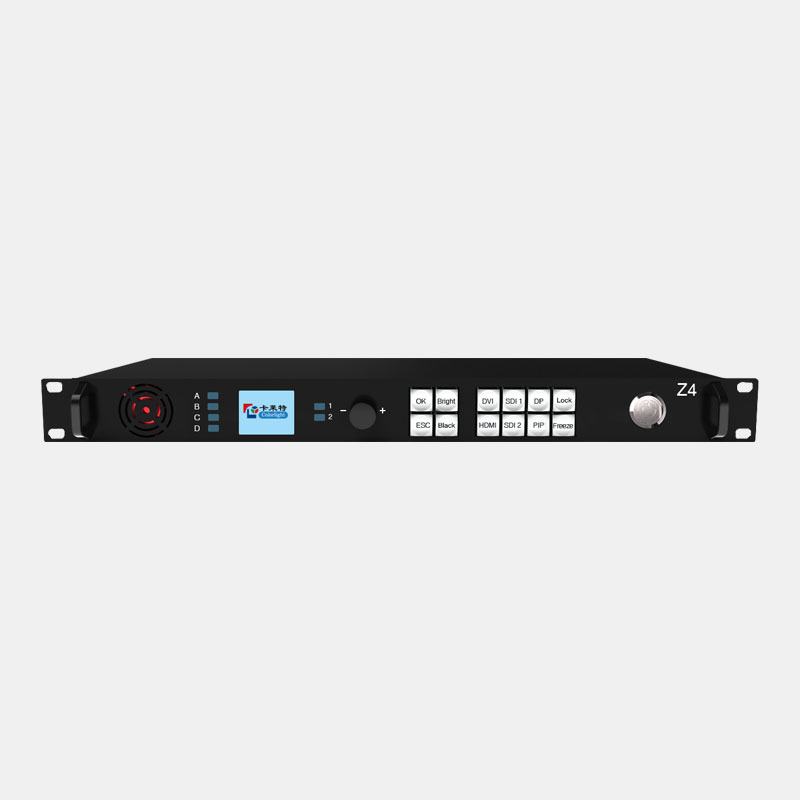

Z4 LED Controller

Click Here to Get Factroy Price LED Display and LED Modules

Colorlight Z4 is a professional LED display controller. As video splicer, processor and sender in one combined, Z4 has high capability of video signal reception, processing and transmission. It achieves excellent high-definition images and flexible image control function. Z4 can be applied to popular rental display and common fixed display perfectly.

PRODUCT FEATURES

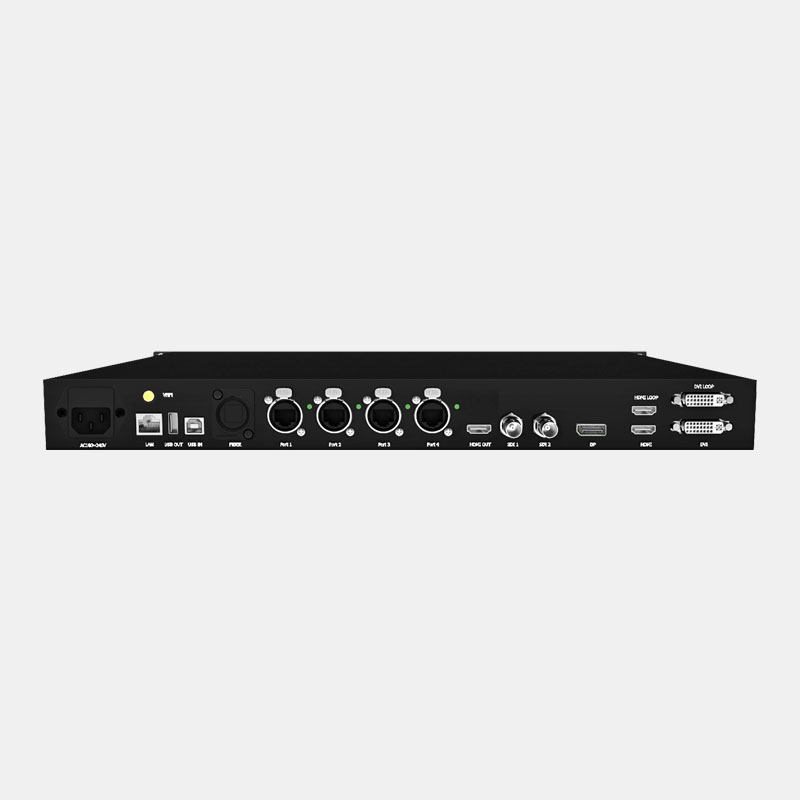

·Video input ports including 1*HDMI(with loop), 1*DVI(with loop), 2*SDI, 1*DP;
·Input resolution up to 1920*1200@60Hz;
·The input images can be scaled according to the screen resolution;
·Support PIP and picture window roaming, the location and size of PIP can be adjusted freely;
·Support 12bit HD video source;
·Loading capacity: 2.3 million pixels; Maximum Width: 4096 pixels, Maximum Height: 4096 pixels;
·Support splicing and cascading among several controllers with synchronization strictly;
·Build-in WiFi module to connect to Internet, support management via smartphone, Pad, etc.;
·Support brightness and chromaticity adjustment, color gamut transformation;
·Support zero latency of sending;
·Support improved gray-scale at low brightness;
·Support HDCP1.4;
·Compatible with all receiving cards , multifunction card, optical fiber transceivers of Colorlight.
